Brand new frame structure design and well matched installation
preocess slimainating the produstion stress amd defromation during
installation, improve the stiffness and stability of machine frame
to a new height.
opetimize transmission relation to make it comply with the
specificationof machinery design, so as to reduce the wear of
transmission and section.
the running precision, impact resistance and drive energy
consumption of reel bear can reach a greatly enhance, on the base
of using the four-point contact bearing principle and german fine
grinding steel wire and steel ball. therfore, 34'' machine only
needs the motor of 3.0KW to be driven easily.
Brand new structure of the central lifting system, structure is
simple, high precision. Easy to operate, making the lifting error
within 0.03mm.
Aviation aluminum cam stand snjoys light weight, high strength,
non-deformation, can effectively reduce can plate deformation due
to cam stand overweight.
The micro-adjustable system of cam adots archimedes spiral
structure to enable a high adjustment precision, match high
precison cam box and frame, preciselyreflecting sinking depth
through the values on the dial.

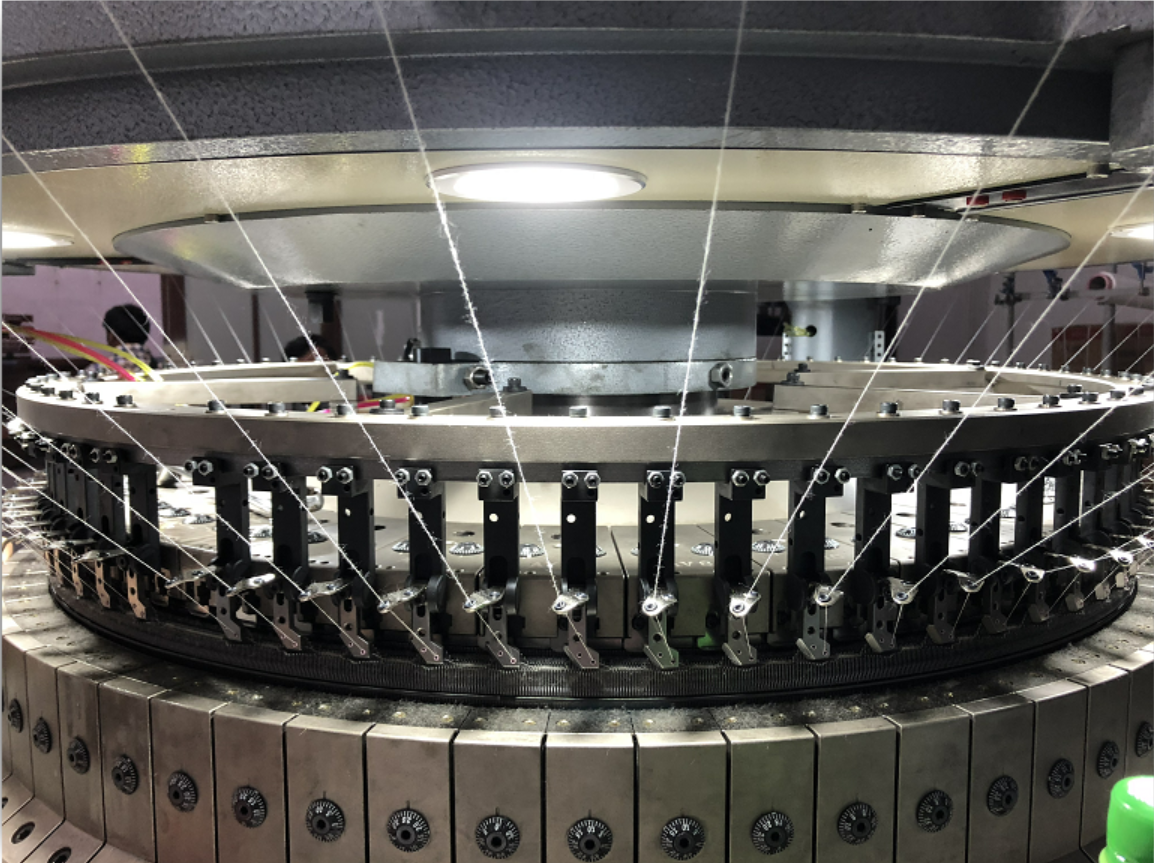

With the innovation of fixing method, sinker of single knitting
machine and feeder ring eliminating deformation during the
installation process, making it at the stretched and natural
condition. and this idea runs through the design idea of the whole
machine.
The double-shaft linkage structure of double knitting machine
eliminates the asynchronous phenomenon between top and bottom hand
discs, caused by tooth mesh clearance.
The new connection way between double knitting machine big tripod
and medium pile footing eliminates the production stress
deforamtion and overcomes displacement phenomenon during
transportation.
The connection way of dial cam stand and needle tray adopts and
adjustable silk structure, easily to adjustment part and mechanical
rotation part of double knitting machine can avoid the influence on
the stabilization of transmission when adjusting needle distance.
The innovated belt puller device changed motor fixed method and
solved the vibration caused by between mator and frame.
